Kōwhai Lane: from empty land to a three-home 3D concept visualisation

Showing what an empty section could become

Vacant land is hard to sell on a plan alone. Most buyers, lenders and even builders cannot picture three homes on a bare section from a subdivision drawing, and a single attractive image does not prove that the scheme actually fits.

Kōwhai Lane is a concept study we built to show the whole route from empty land to a concept 3D visualisation: a typical flat 30 × 50 m town section in Ashburton, Mid Canterbury, divided into three 500 m² lots along a shared 4 m driveway, with three single-storey gable homes in white brick and near-black roofing.

It is a concept, not a commission. There is no surveyed site or street address behind it, and the neighbouring houses are illustrative. Everything inside the boundary, though, is modelled to real dimensions.

Drag to compare. The same drone-style viewpoint before and after: the empty section (an illustrative view, not a site photo) and the first quick concept of three homes on it.

The challenge: images that look right but disagree

The first set of AI-only renders looked convincing one image at a time, but the images did not agree with each other. House positions, roof shapes and the driveway shifted between the aerial, the street view and the rear garden. For a land development pitch that is a real problem: if the views contradict each other, nobody can trust the lot sizes or the spacing.

Step 1: a measured 3D massing model before any rendering

We stopped rendering and set the scheme out to scale in SketchUp first: a 30 m frontage and 50 m depth, three lots stacked from the street to the rear, and a 4 m shared right-of-way along the eastern boundary. Each home is 164 to 165 m² including a double garage, with a 27° gable roof, a north-facing 6 × 2.5 m patio and a covered entry.

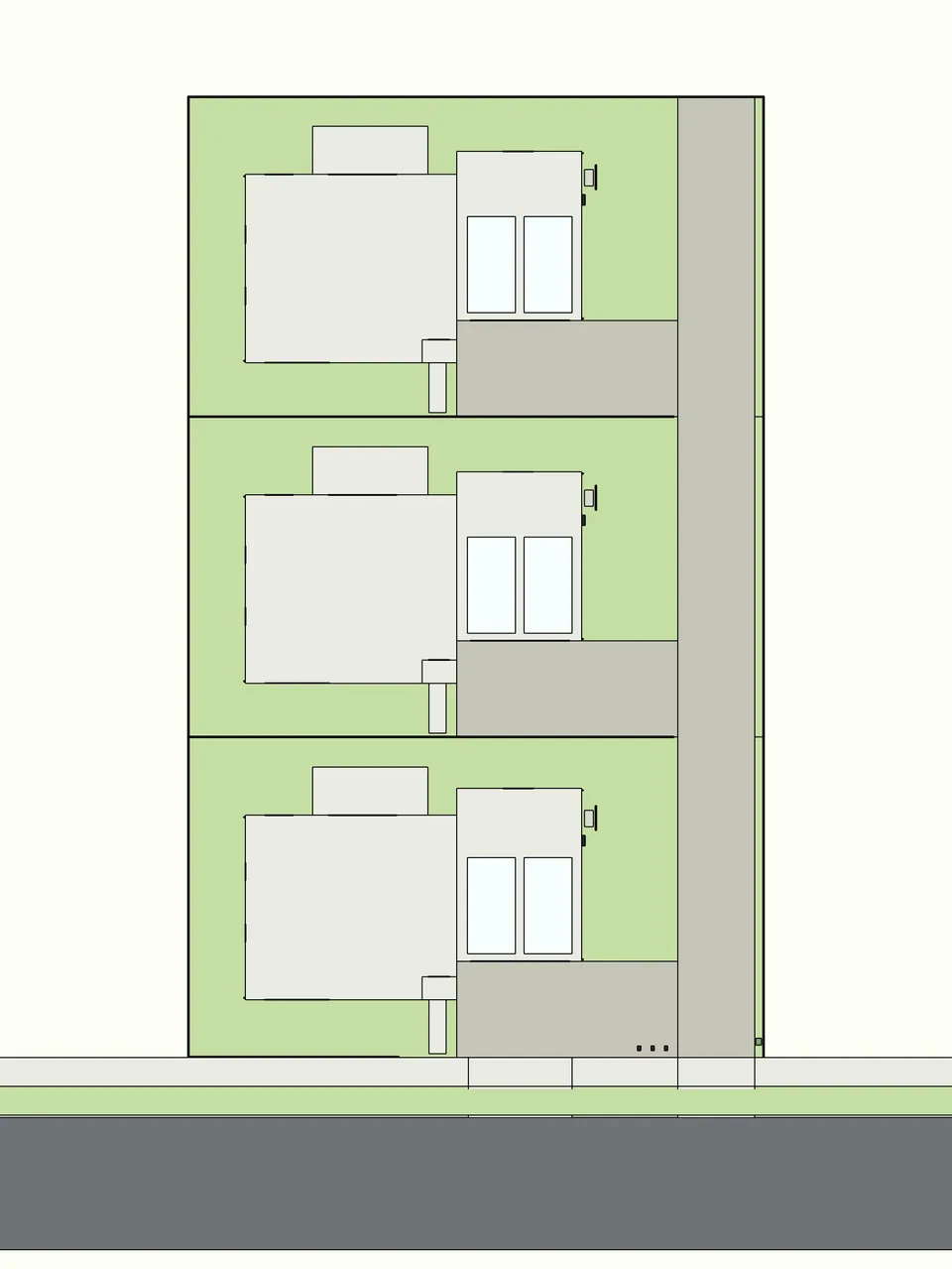

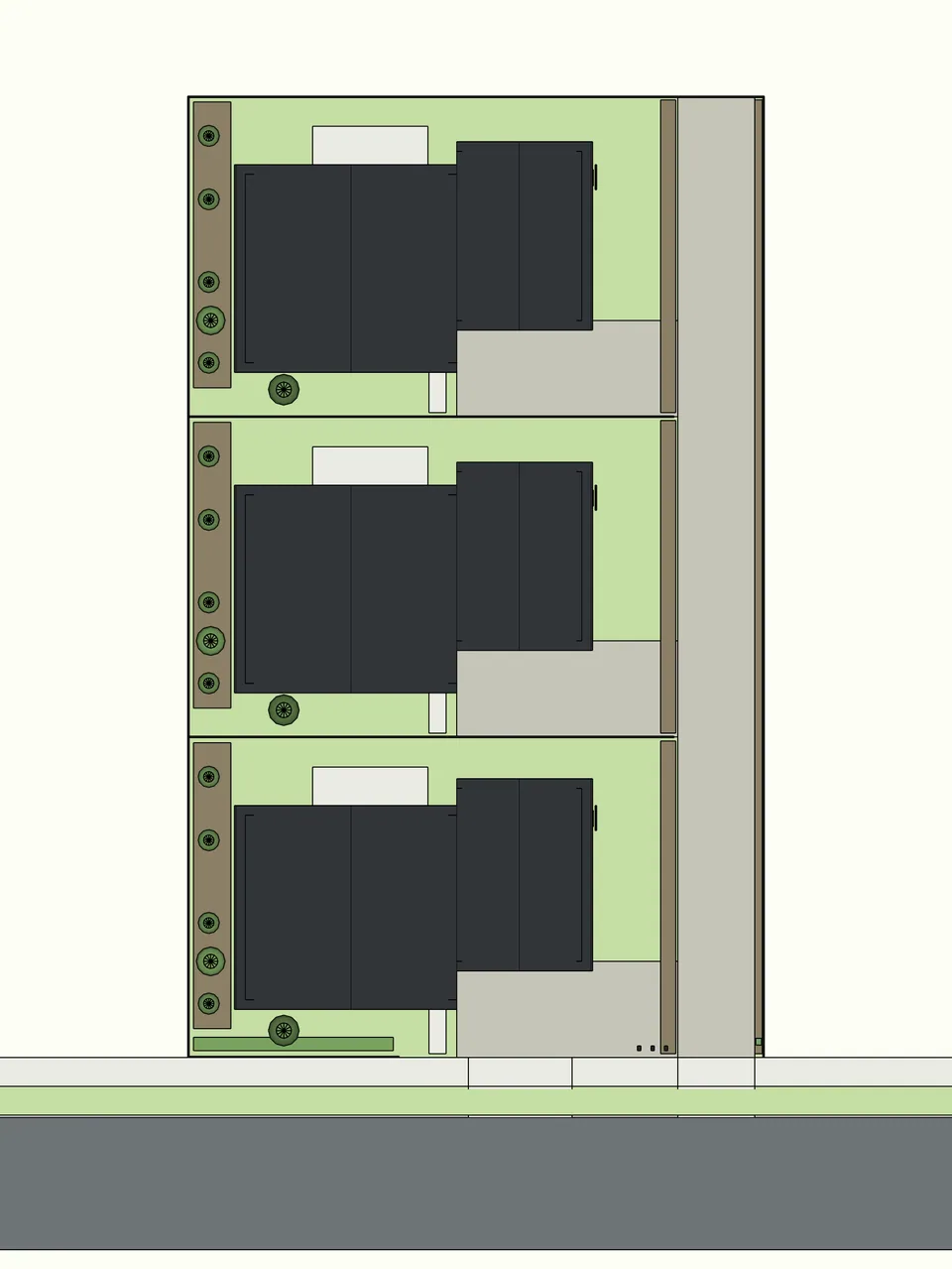

The top-down views below come straight from the model and were used to check areas and separations before a single material was applied.

• 1,500 m²Site area, 30 × 50 m
• 3 × 500 m²Lots, including shared access
• 164–165 m²Each home, with double garage
• 27°Gable roof pitch on all three homes

Step 2: from model to render, through the same camera

Each final image started as an export from a camera saved in the model. Materials, planting, daylight and the surrounding neighbourhood were added on top of that geometry and checked against the model after every pass, so the model decides where things are and the rendering only adds the realism. Drag each slider to see the massing model turn into the finished view.

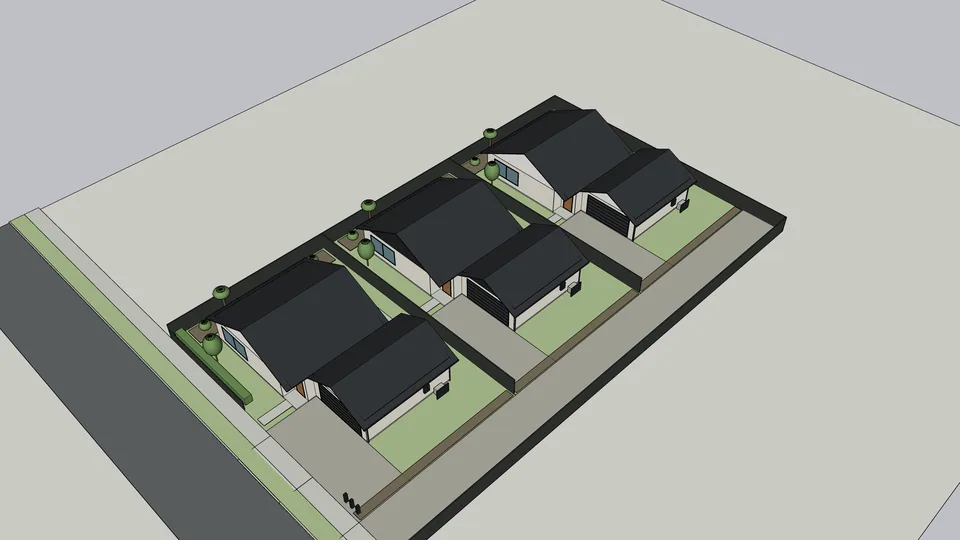

Aerial view of the whole development

Aerial view from 60 m: all three homes, the shared driveway and the lot boundaries, placed exactly as modelled.

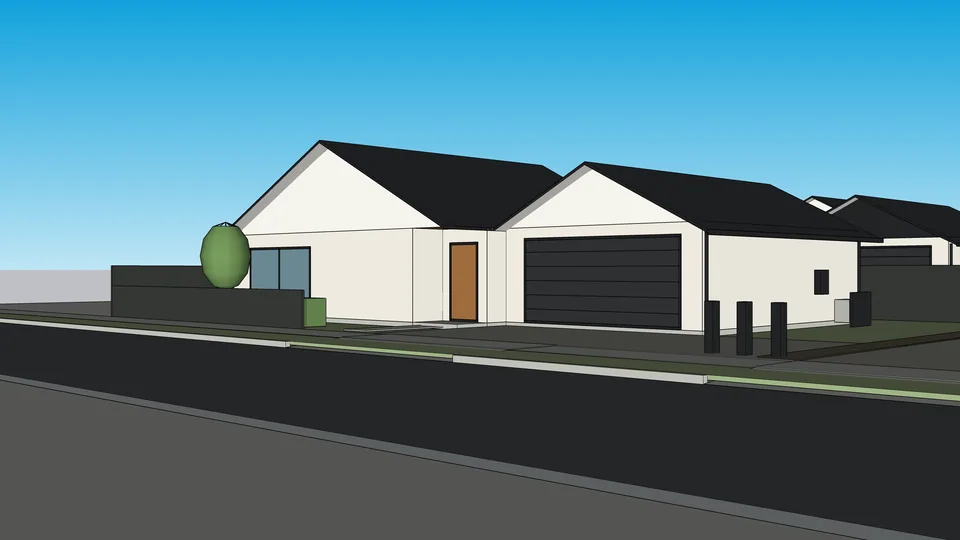

Street view of the front home

Lot 1 from the footpath at eye level (1.65 m): white brick, black joinery, a timber front door and the driveway running back to the rear lots.

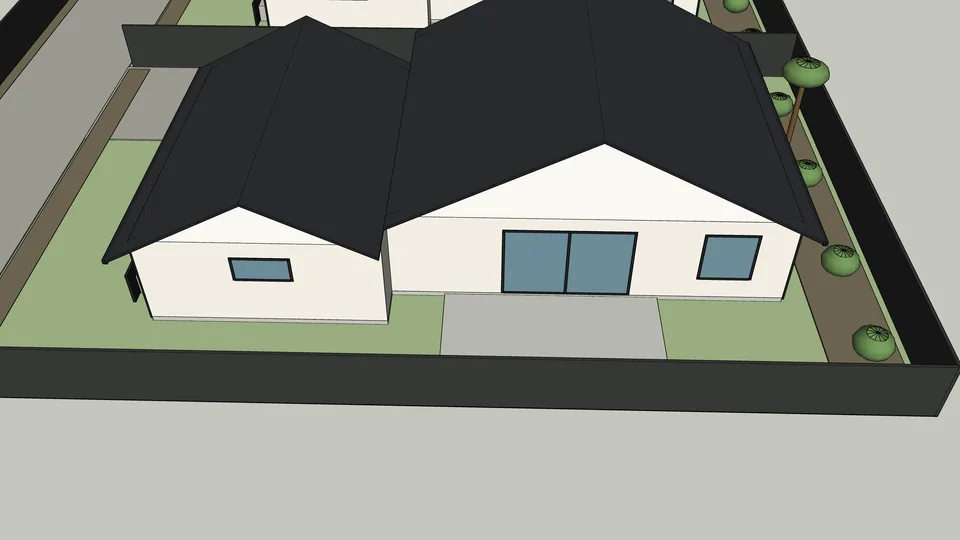

Outdoor living on the rear lot

Lot 3's north-facing patio and lawn, showing that the back section is not second best.

What we checked against the model

• Three lots of 500 m² each on a 1,500 m² site, including 200 m² of shared access
• 6.87 m between neighbouring homes, the same between Lots 1 and 2 as between Lots 2 and 3
• Every patio 6 × 2.5 m, with about 4 m of clear garden beyond it
• Twelve roof planes, all at 27°
• A 5.4 m vehicle crossing for Lot 1 and a 4 m crossing for the shared driveway
• Sun from the north and north-west, as it is in New Zealand, so living areas and patios face the light

The final images were then reviewed one by one against the model exports, and anything the rendering had invented or moved was corrected before sign-off.

The result

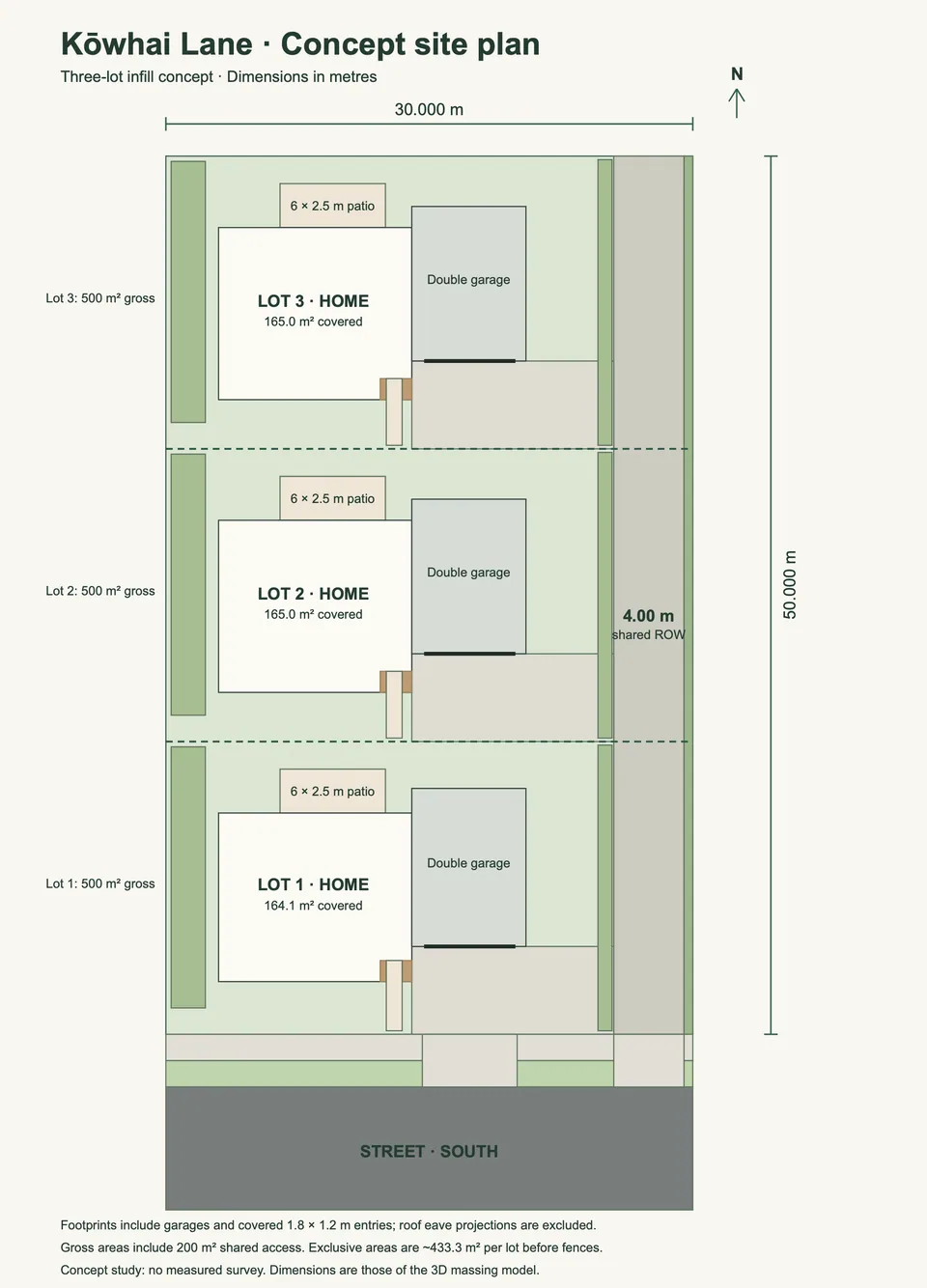

Three final views (aerial, street and rear outdoor living) that match the model line for line, plus a dimensioned concept plan. A developer or agent can show the scheme from the air, from the footpath and from the back garden, and the homes, driveway and fences sit in the same place every time.

Where this helps: selling or funding land before it is built on

The same process works for any vacant plot, subdivision or infill site, and it sits alongside our other 3D visualisation for builders and developers:

• Developers and builders can test how many homes fit and present the scheme to buyers, partners or lenders.
• Real estate agents can market a bare section with a believable before-and-after instead of an empty paddock.
• Landowners can show the potential of a site when they sell.

Common questions

What do you need to visualise a vacant plot?

A title plan or survey if you have one, or simply the site dimensions, a rough layout or the number of homes you have in mind, and a few reference images for the style. Where surveyed plans or architectural drawings exist, we build the model from those.

Why build a 3D model first instead of rendering straight away?

Because several views of one development have to agree. A scale model fixes the lot sizes, footprints, roof pitches and driveway once, and every render is then taken from it. Without it, each image is a separate guess.

Is a concept visualisation the same as consent drawings?

No. It is a sales and planning aid. It is not a survey, and it does not replace consent drawings, council checks or engineering.
